Fire Protection in Race Cars: From HPDE Basics to Full Suppression Systems
Most track-day drivers don't think about fire until the first time they smell something hot coming from the engine bay. It's one of those risks that's statistically rare but genuinely serious, and the right level of preparation depends a lot on what you're driving and how hard you're driving it. Here's how fire protection scales from a stock HPDE car to a full-on race build, and what actually matters at each stage.
HPDE: What's Required vs. What's Smart
If you're running HPDE in a mostly stock street car, the rules are looser than you might expect. Most fire systems aren't required for HPDE specifically, but sanctioning bodies still expect drivers to be prepared. NASA, for example, requires either a handheld fire extinguisher or a fire suppression system under its club rules, and other organizations follow similar logic. In practice, almost every instructor will tell you the same thing: bring an extinguisher, mount it properly, and know how to use it before you need to.
A securely mounted extinguisher is the baseline for any car on track, full stop. A 2.5 lb ABC extinguisher will satisfy most HPDE and time-attack rule sets, but many drivers step up to a 5 lb unit with an all-metal valve for more capacity and a longer discharge time. Bigger isn't always better here — you want something you can actually lift and aim one-handed while half out of a harness.
 Sparco Dry Powder Fire Extinguisher – 2 Liter $129.00 Shop on Enzuca → |
 Sparco AFFF Handheld Stainless Fire Extinguisher – 2 Liter $169.00 Shop on Enzuca → |

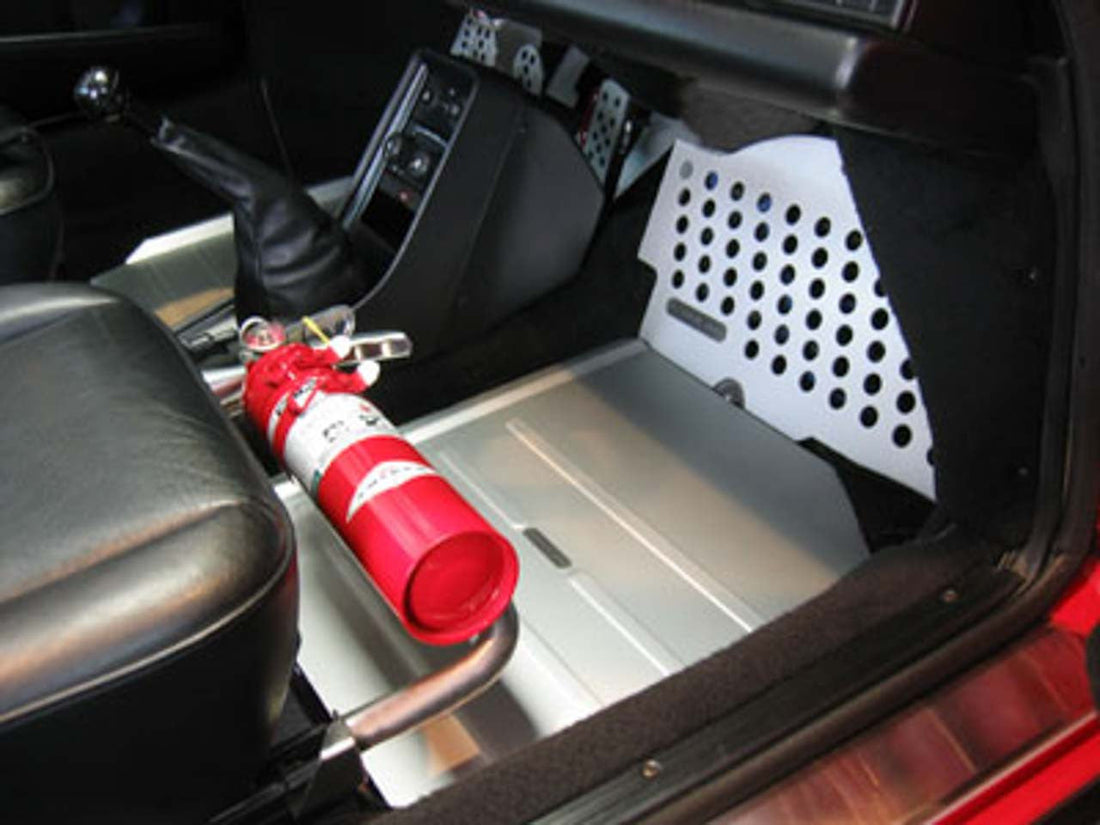

Mounting Matters as Much as the Extinguisher
An unsecured extinguisher is a liability, not a safety device. In a crash or rollover, a loose canister becomes a projectile inside the cabin. The standard advice from racing safety suppliers is consistent: use a metal, quick-release bracket secured with nuts and bolts rather than sheet-metal screws or adhesive mounts, and mount it within easy reach of the driver while still belted in. A roll bar or harness bar is a common, effective spot. Velcro mounts are popular but worth avoiding — tight enough to hold securely, they're slow to release in an emergency; loose enough to release quickly, they won't survive an impact.
One more detail that gets overlooked: mount it on the passenger side where practical, so it can't interfere with the pedals if it ever shakes loose.
 Brey Krause R-9530 Quick Release Fire Extinguisher Mount – 90mm Bottles $301.93 Shop on Enzuca → |
Full Race Cars: Fire Suppression Systems
Once you move from HPDE into wheel-to-wheel racing, most sanctioning bodies require an onboard fire suppression system rather than just a handheld extinguisher. These systems are built around the SFI 17.1 specification (or the FIA equivalent for international competition), which sets minimum performance standards: the system must discharge at least 95% of its agent and extinguish a fire within 10 seconds for rear-engine cars or 20 seconds for front-engine cars, with no flame re-ignition allowed. Systems with automatic, heat-activated triggers must fire within 15 seconds of detecting flame.
A typical setup includes a pressurized cylinder mounted in the cabin or trunk, a network of discharge nozzles aimed at the engine bay, fuel cell, and cockpit, and a pull cable or push-button activation accessible to both the driver and a corner worker from outside the car. Some systems add automatic thermal triggers as a backup to manual activation.
 Sparco AFFF Steel Mechanical Fire System – 4.25 Liter $499.00 Shop on Enzuca → |
 Sparco AFFF Stainless Steel Electric Fire System – 4.25 Liter $999.00 Shop on Enzuca → |
Choosing a Suppression Agent
The agent inside the cylinder matters more than most people realize. The most common choices today are 3M Novec 1230 and DuPont FE-36, both developed as clean replacements for Halon, which has been phased out for ozone-depletion reasons. Both leave no residue and require no cleanup, which matters when the alternative — AFFF foam — does an excellent job smothering fire but leaves the engine bay and cockpit needing a full rinse afterward.
| Agent | Pros | Trade-offs |
|---|---|---|
| Novec 1230 | No residue, non-conductive, smaller/lighter cylinder for the same effectiveness | Slightly higher cost per system |
| FE-36 | Strong per-volume extinguishing performance, Halon-comparable | Larger cylinder needed than Novec for equivalent coverage |
| AFFF (foam) | Excellent at coating surfaces and reaching into gaps | Leaves foam residue; full rinse-down needed after use |
Maintenance Is Part of the System
A suppression system is only as good as its last service. SFI and FIA both call for systems to be inspected and serviced every two years by an authorized dealer, the agent itself typically carries a two-year expiration, and cylinders need replacement around the ten-year mark. It's an easy thing to let lapse on a car that only comes out a few weekends a season, but it's exactly the kind of detail tech inspectors check for before they'll let you on track.
Don't Forget the Driver
Fire protection isn't just about the car. Nomex suits, gloves, and underlayers rated to SFI 3.2A or FIA 8856-2000 standards buy a driver critical extra seconds to get clear in the event of a fire, and that gear matters just as much in an HPDE paddock as it does on a grid. A good suppression system and a fire-rated suit are meant to work together, not as substitutes for each other.
 Sparco Sprint Pro Racing Suit $749.00 Shop on Enzuca → |
 OMP First Fire Resistant Racing Gloves – FIA 8856-2018 $159.00 Shop on Enzuca → |
The Bottom Line
For HPDE, the floor is a securely mounted, properly sized handheld extinguisher and the knowledge to use it fast. As you move into structured racing, that floor rises to an SFI- or FIA-rated suppression system with a clean agent like Novec 1230 or FE-36, plus a maintenance schedule you actually follow. Either way, fire protection is one of those categories where the right gear, mounted right and checked on time, is worth far more than the time it takes to think about it now.
