Endless 6POT Light Front Brake Setup (17inch~) for Subaru WRX 22+ VB Chassis/NON Brembo-TR

Special orders: Built to order from the Endless Factory in Japan. Delivery in 30-60 days.

What is included:

Front 6Pot Light Calipers

Front 355x32mm 2PC curving slit rotors

Endless MX72 Brake pads

Specifications

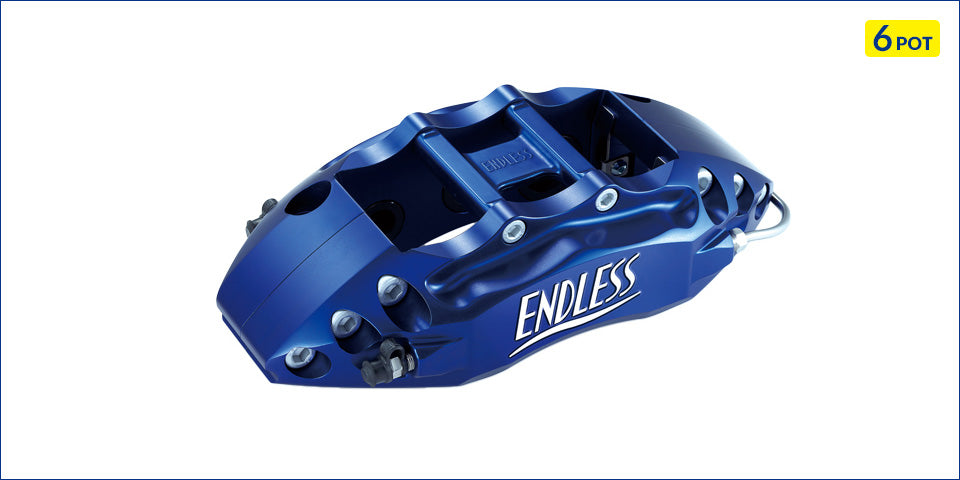

Caliper

• Caliper Product No:EC671 (*Narrow body of EC670)
• Weight:2,924g
• Size:D:141mmxH:79mmxW:278.5mm
• Piston Size:27x2mm, 32x2mm, 38x2mm
• Disc Capacity : Diameter (mm)=300<370 / Thickness (mm) =<32
• Std Color of kit:Blue Anodize
• Pad Item number:RCP120
• Pad Thickness:16mm
• Std Compound for kit:All compatible pads are an option at checkout.
• Seal Kit:ECRK6
• *Forged 2pcs Type

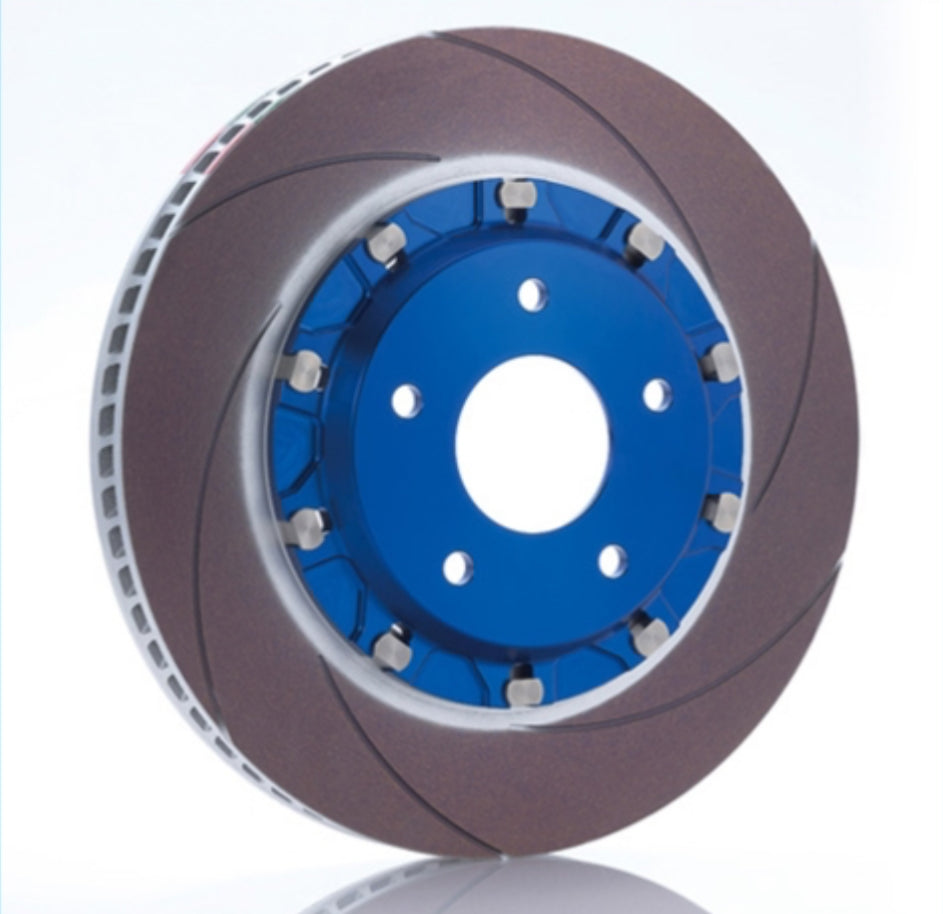

Rotor

Used in actual races including the Super GT which is in the top categories of the nation, the racing spec brake rotor created through repeated research and development is “BRAKE ROTR Racing”. Adopting a 2 piece type which differentiates the rotor and bell

RACING

Used in actual races including the Super GT which is in the top categories of the nation, the racing spec brake rotor created through repeated research and development is “BRAKE ROTR Racing”. Adopting a 2 piece type which differentiates the rotor and bell housing, we combine special carbon for the rotor material with our unique technology. As a result, it is crack resistant, enabling a stable friction coefficient and succeeding in sufficiently extracting the brake pad performance. We also used duralumin, which is heat resistant and strong, for the bell housing part. It realizes a reduced unsprung weight while also contributing to stable brake force. ※The fastening of the bell housing and the disk of the front 2 piece rotor is a fixed type. (Floating specifications are treated as special orders. (Excluding R35GT-R))

Brake Pads
