Brembo GT|R Front Brake Kit — 6-Piston Nickel Plated, 405mm 2-Piece Discs — BMW 5 Series / 6 Series (F10, F11, F07, F12, F13, F06)
Brembo GT|R Front Brake Kit — 6-Piston Nickel Plated, 405mm 2-Piece Discs — BMW 5 Series / 6 Series (F10, F11, F07, F12, F13, F06)
Backordered — lead time confirmed within 1 business day of your order
Couldn't load pickup availability

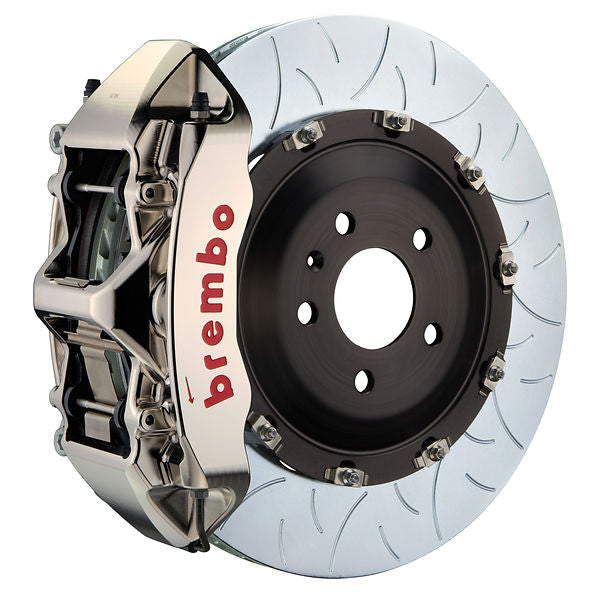

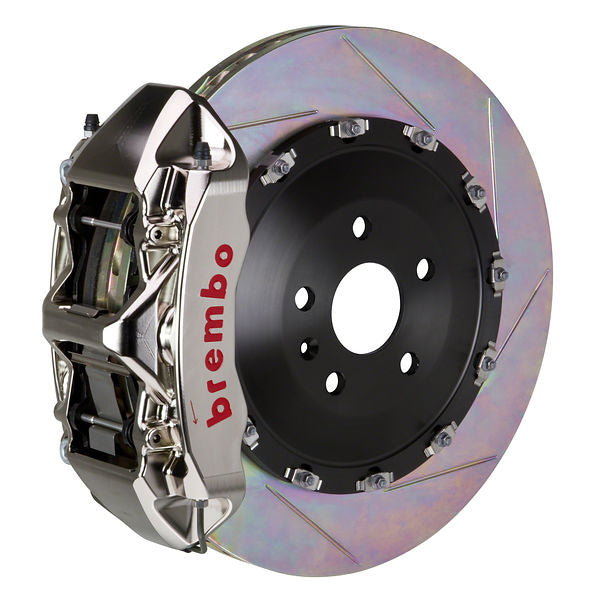

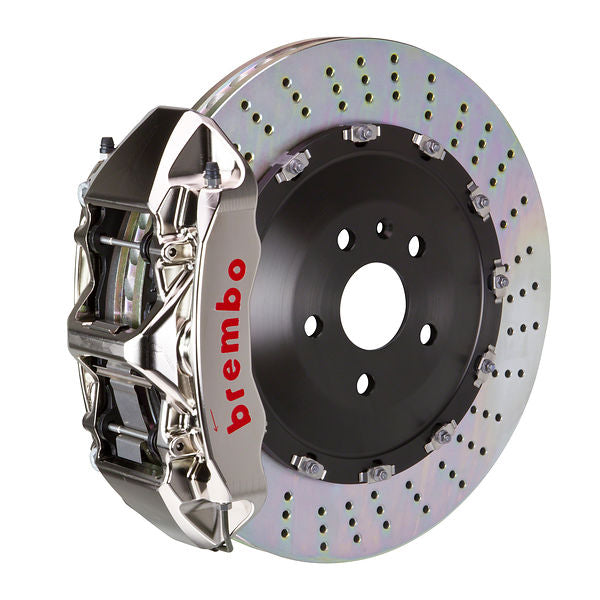

The Brembo GT|R front brake kit for the BMW 5 Series / 6 Series (F10, F11, F07, F12, F13, F06) pairs 6-piston monobloc billet aluminum calipers with 405 x 34mm two-piece floating discs. It arrives as a complete bolt-on system for one axle — calipers, pre-assembled discs, application-specific adapters, stainless brake lines, pads and all mounting hardware. Choose your caliper finish and disc type above.
Availability: In-stock options ship in 2 business days. Options marked Backordered can still be ordered — the lead time is confirmed within 1 business day of your order. We are an authorized Brembo dealer.
Important — check wheel clearance. Before you purchase a Brembo Performance or Racing brake system you should always confirm that the vehicle's wheels have adequate clearance, regardless of wheel size.
What's Included
Ready-to-bolt-on brake system for one axle, including:
- Brembo High Performance Brake Calipers
- Brembo High Performance Brake Discs, Pre-Assembled and Ready to Install
- Application-Specific Brembo Engineered Caliper Adapters
- Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
- Brake Pads
- All Required Mounting Hardware
- Detailed Installation Instructions
Replacement Parts
- Pads: P1002.18.C01 — shop pads & compounds
- Discs (LH/RH): Drilled 906544/906545 · Type 1 906546/906547 · Type 3 906578/906579 — shop discs
- Disc hardware pack: 915507 — shop hardware

Specifications
| Piston Count | 6 Piston |
| Caliper Finish | Nickel Plated |
| Caliper Material | Billet Aluminum |
| Caliper Construction | Monobloc |
| Mount Type | Radial |
| Quick Release Pad Retainer | Yes |
| Disc Construction | 2-Piece |
| Piston Type | With Insert |
| Piston Material | Aluminum |
| Piston Insert Material | PI-Stainless Steel |
| Dust Seal | Recessed Wiper |
| Bleed Screw | Dual |
| Disc Material | Advanced High Carbon Alloy |
| Disc Finish | Corrosion Resistant Plating |
| Disc Vane Design | Curved Vane |
| Disc Diameter | 405 mm |
| Disc Thickness | 34 mm |
| Disc Air Gap | 12 mm |
| Disc Annulus | 61.5 mm |
| Disc Mounting System | Floating H-Bobbin with Anti-Rattle Spring |
| Manufacturer Code | 1N1.9524A |
Vehicle Fitment
| Make | Model | Years | Position |
|---|---|---|---|
| BMW | 535i, 535i xDrive (F10, F11) | 2011-2016 | Front |
| 535i, 535i xDrive Gran Turismo (F07) | 2010-2016 | Front | |
| 550i, 550i xDrive (F10, F11) | 2011-2016 | Front | |
| 640i (F12, F13) | 2012-2017 | Front | |
| 640i Gran Coupe (F06) | 2012-2018 | Front | |
| 650i, 650i xDrive (F12, F13) | 2012-2017 | Front | |
| 650i, 650i xDrive Gran Coupe (F06) | 2012-2018 | Front |
Fitment data is provided as a guide. Please confirm your specific application before ordering.
