Genuine Brembo replacement brake pads for Brembo systems using the L caliper family with 68 mm annulus pads — the larger-pad version of the L caliper, fitted to Bentley, Mercedes-Benz and Rolls-Royce applications. Supplied as a complete axle set of 4 pads with wear sensor provision.
Compound
| Compound | Part number | Use |
|---|---|---|
| Ferodo FM1000 | P1003.18.C01 | High performance street. The compound Brembo fits as standard to its High Performance systems — excellent initial response, pedal feel and modulation across a wide temperature range. The like-for-like replacement. |
FM1000 is currently the only compound Brembo lists for the 68 mm annulus L caliper. If you need a track compound, contact us and we'll check current options with Brembo Race Technologies.
Specifications
| Caliper family | L, 68 mm annulus |
| Caliper part numbers | 1Lx.95xxx, 1Lx.8002A–8004A, 1Lx.8007A–8008A, 1Lx.8010A–8014A |
| Position | Front |
| Pad wear sensor | Yes |
| Quantity | Set of 4 (one axle) |
Availability
Availability may vary. We confirm current stock and lead time on every order, and your order will be confirmed with you before it is processed.

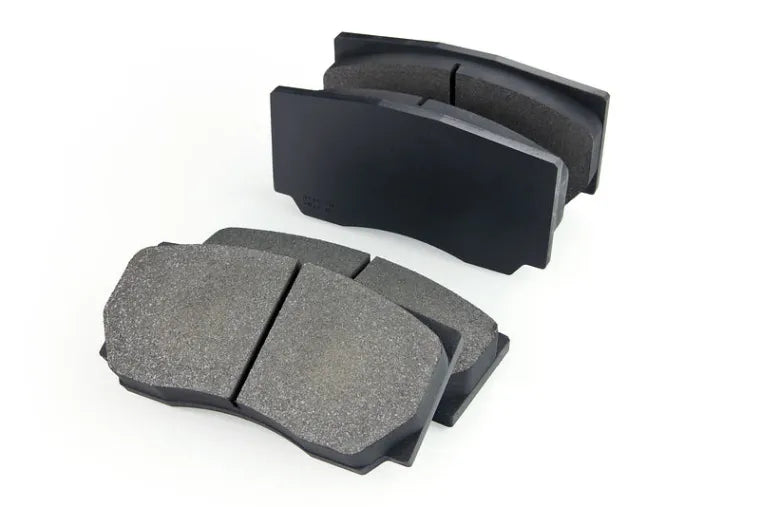

Product images are representative of Brembo brake pads and do not depict the actual part supplied. Pad shape varies by caliper.
Confirm your caliper before ordering
The L caliper is used with two different pad sizes. This listing is the 68 mm annulus pad. Check the part number cast into your caliper — it should be one of 1Lx.95xxx, 1Lx.8002A–8004A, 1Lx.8007A–8008A or 1Lx.8010A–8014A. Calipers numbered 1Lx.8001A, 1Lx.8005A–8006A, 1Lx.8009A, 1Lx.8015A–8018A or 1Lx.90xxx take the 65 mm pad instead. Not sure? Send us your caliper part number and we'll confirm.
Vehicle applications
| Bentley | Continental GT, GTC Front (2003-2018), Flying Spur Front (2003-2013) |
| Mercedes-Benz | GL350, GL450, GL550 Front (X166) (2013-2016), GLS350, GLS450, GLS550 Front (X166) (2017-2019), ML550 Front (W166) (2012-2014) |
| Rolls-Royce | Ghost Front (2010-2019) |
Applies to vehicles fitted with a Brembo system using this caliper.
