Racing Seat Installation: Brackets, Sliders and Harness Mounting

A racing seat is the most effective safety upgrade most track cars ever receive — and the one most often installed incorrectly. The seat itself is the easy part. What separates a proper installation from a dangerous one is everything underneath it.

Step 1: Pick the Seat

Start here, because the seat dictates everything below it. The short version: fixed-back shells are stiffer, lighter and mount lower; reclining sport seats keep adjustability and street livability. If the car is genuinely dual-purpose, a reclining seat is usually the better call.

Three things matter for the installation specifically:

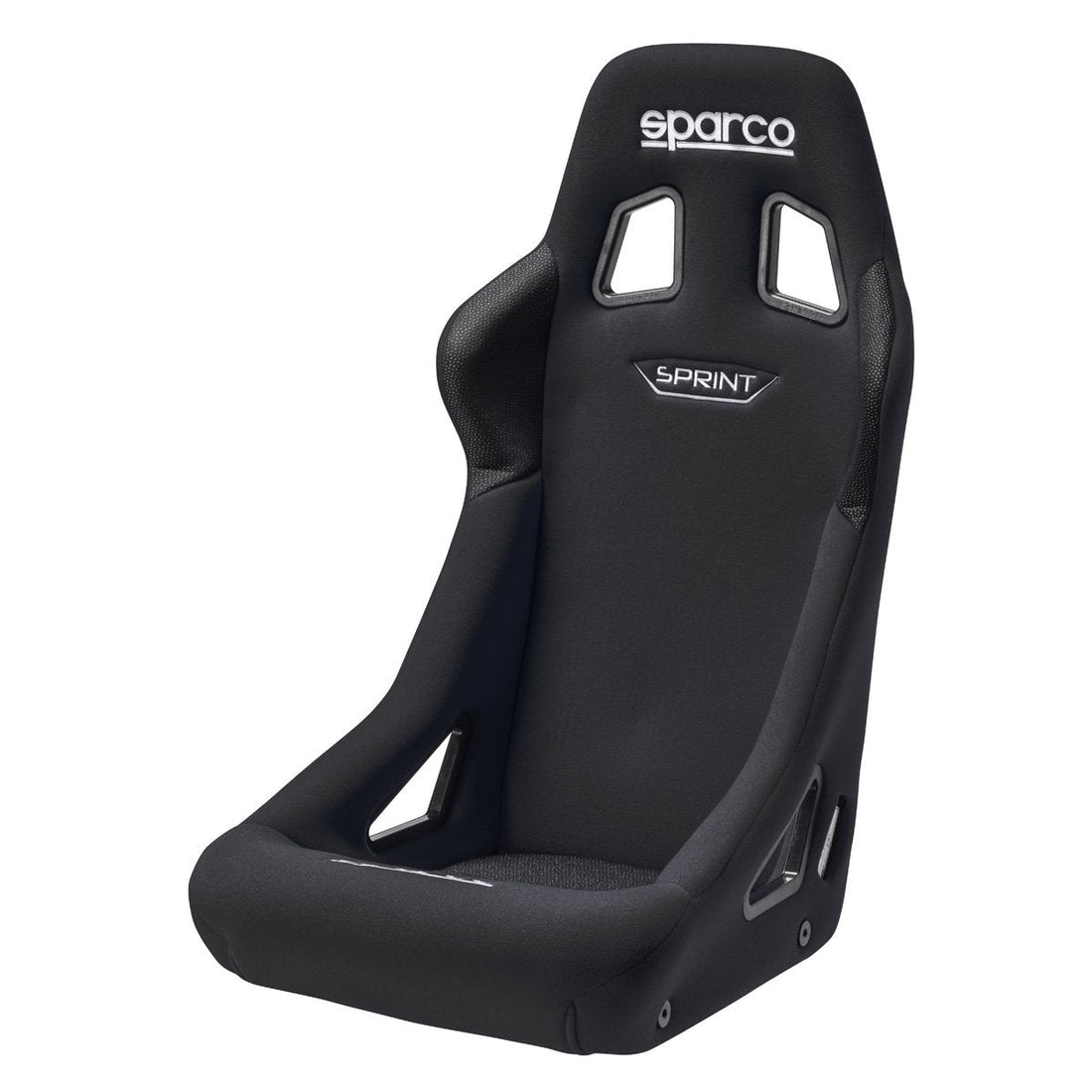

• Does it offer both side and bottom mounting? The Sparco Sprint does, which keeps your options open at Step 2. Some shells only do one.
• Does it have the harness slots you need? A centre hole for the anti-submarine strap of a 5- or 6-point harness isn't universal.
• What width is the shell? This sets whether your side mounts will clear the transmission tunnel and door card.

Full detail on choosing — homologation, expiry dates, containment levels and sizing — is in Racing Seats 101.

Sparco Sprint — FIA-Approved Side or bottom mount · centre harness hole $500.00 Shop on Enzuca →

Sparco R100 v2 — Reclining Dual-purpose cars $425.00 Shop on Enzuca →

Step 2: The Mounting Bracket

This is what physically holds the seat, and it's the decision that sets your final seating height. Two ways to do it.

Side mounting

The seat bolts through the flanges on its sides into brackets running alongside it. Because the hardware sits beside the shell rather than under it, side mounting typically achieves a lower hip point for the same seat — which is why it dominates in purpose-built race cars. Lower centre of gravity, more headroom in a helmet, and a more natural relationship to the harness slots.

The Sparco Steel Side Mount is the standard piece, with multiple mounting positions, and its hole pattern fits many other manufacturers' seats including OMP. If your car is tight on space, the QRT Extended 90-degree mount uses a straight bend for a smaller footprint — though it adds height, so use it only where packaging forces your hand.

Bottom mounting

The seat bolts down through its base into brackets underneath. Simpler, works naturally with sliders, and makes fore-aft adjustment straightforward. The cost is height, because the hardware stacks beneath the seat pan.

Choose side mounting for a dedicated track car, bottom mounting where adjustability matters more than the last inch of height.

Sparco Seat Side Mount — Steel Fits Sparco, OMP and many others $89.00 Shop on Enzuca →

Sparco QRT Extended Side Mount — 90° Smaller footprint for tight cars $150.00 Shop on Enzuca →

Step 3: The Slider — Decide Now, Not Later

The slider sits between the mounting bracket and the base, so you have to commit before anything gets bolted down. Retrofitting one later means pulling the whole assembly apart.

Fit one if more than one person drives the car — an instructor, a co-driver, a partner. In a shared car it stops being a convenience and becomes close to essential.

Skip it if only you drive the car. Three reasons:

• Height. A slider stacks into the assembly and undoes some of the lowering you just paid a side mount to achieve.
• Stiffness. Every extra interface between shell and chassis is somewhere rigidity is lost.
• Homologation. Not every slider is race-legal. OMP states plainly that its slider set is not FIA homologated for racing use — fine for a street or HPDE car, a problem in a series that requires homologated mounting throughout.

Look for a double-locking design, which both the Sparco and Sabelt sets use. Running a Porsche 996/997/986/987 with Sparco hardware? Brey Krause makes a dedicated Sparco slider adapter for it.

Sparco Slider Track Set Double locking $89.00 Shop on Enzuca →

Sabelt Slider Track Set Double locking $99.95 Shop on Enzuca →

OMP Slider Track Set Not FIA homologated $129.00 Shop on Enzuca →

Step 4: The Base and Anchor Parts

Finally, the floor. The base — also sold as a seat bracket or seat adapter — is the vehicle-specific piece that bolts to your car's existing seat mounting points and carries everything above it.

This is the part that's specific to your car, down to the chassis generation and often the year range. A base for a 1994–2001 Integra is not the one for a 2002–06 RSX.

Three things that catch people out:

• Bases are sold per side. Read the driver/passenger designation — one seat needs one base.
• The base and the side mount are different parts. This is the single most common ordering mistake. Step 2 and Step 4 are two separate purchases.
• Check for an extra-low version first if you're tall in a low car. The Brey Krause R-9153 for the C6/C7 Corvette is a good example — far easier than modifying anything later.

Our Seat Brackets & Side Mounts collection runs to over 700 parts. Planted covers a very broad range of chassis at $199 per side, Sparco 600 Series is the natural pairing with a Sparco seat, and Brey Krause has unusually deep Porsche, BMW, Corvette and Camaro coverage across 227 parts.

Planted Base — Civic 2006–11 Sold per side $199.00 Shop on Enzuca →

Brey Krause Extra-Low Corvette C6 / C7 $262.48 Shop on Enzuca →

Seat Hardware Kit 8 screws, washers, nyloc nuts $15.00 Shop on Enzuca →

Use grade-rated hardware with nyloc nuts throughout — a seat sees constant vibration and a plain nut will eventually walk loose. Don't reuse whatever was in the parts bin.

Now the Seat Is In. Sit in It.

Before you touch the harness, get in the car with everything bolted down and check three things:

• Headroom. In a helmet, with your normal driving posture. If you're touching the headliner, go back a step — a lower base, or side mounting instead of bottom.
• Pedal reach. You should be able to fully depress the clutch with a bend still in your knee.
• Shoulder height. Note where the tops of your shoulders sit relative to anything behind you. This determines your harness geometry, and it's the reason the seat goes in first.

Step 5: The Harness and Its Mounting Points

A racing shell has harness slots cut through it because it's designed around a harness, not a factory three-point belt. Route a factory belt around the outside of a bucket and it no longer sits on your pelvis properly, and gives you nothing to prevent submarining.

For choosing the harness itself — point counts, webbing width, FIA 8853 dating, HANS compatibility — see Racing Harnesses Explained. What follows is the mounting, which is where installations go wrong.

Shoulder strap angle

Measured from the top of your shoulder with you seated in the car, viewed from the side:

• With a head-and-neck restraint: maximum 20 degrees below horizontal.
• Without an FHR device: up to 45 degrees below horizontal.
• Never angle upward from the shoulder. A strap rising from your shoulder to its anchor pulls you up and out of the seat under deceleration instead of holding you down.

Running an FHR? Measure from the top of the belt bearing surface on the device, not your bare shoulder.

The practical consequence: the anchor needs to be close behind the seat, not back at the rear bulkhead. A common guideline is a harness bar no more than about eight inches behind the seat. Mounting to the floor well behind the seat is the classic error — it produces exactly the shallow upward angle you're trying to avoid.

Shoulder strap spacing

Viewed from above, the two straps should form an angle of 10 to 25 degrees between them, 20–25 preferred, with the anchor points symmetrical about the seat centreline. They may touch or cross behind the seat if the car's geometry requires it.

Lap belt

The lap belt must pass through the slots in the seat, not around the outside, and sit snugly across your pelvis — over the hip bones, never across the abdomen. Mount to the floor, the transmission tunnel, or the factory belt points, positioned so the belt runs cleanly without twisting.

Anti-submarine strap

This is what stops you sliding forward and down under the lap belt in a frontal impact. It passes through dedicated slots in the seat. On a 5-point the single strap can mount up to around 20 degrees forward; on a 6-point the two straps can mount up to around 20 degrees behind the vertical line formed with the shoulder belts.

Anchoring it is often the hardest part of the whole job, because the correct location is underneath the seat where there's rarely anything to bolt to. Some bracket systems solve it — the Brey Krause R-9172 attaches to their Camaro adapters with five mounting positions. It isn't a stand-alone part; it needs the matching adapter underneath.

Anchor hardware

The belt is only as good as what it's bolted to:

• Bolts: minimum 7/16" UNF or M12 grade 8.8.
• Reinforcement plates: creating a new anchor point in sheet metal calls for a steel counter-plate of at least 40 cm² and 3 mm thickness. Bare floor pan will tear out.
• Three-bar slides: strap through the slide three times, at least 100 mm of tail beyond it, slide as close to the bar as possible.
• Never drill through roll cage tubing. Bolted bar mounts require welded inserts.

Bolt-In Mounting Kit For factory points $10.00 Shop on Enzuca →

Reinforcement Plate Weld-in · for new points $6.50 Shop on Enzuca →

Sub Belt Mount Five positions · Camaro $64.32 Shop on Enzuca →

Step 6: Add-Ons for the Seat and Base

None of these are required to finish the job. All of them solve a problem you'll meet within the first few events.

Fit and comfort

If the shell is slightly generous, padding takes up the difference — which is why sizing up is the safer error. A seat pad kit tunes the fit properly, and a bottom cushion adjusts your height in the shell — useful for fine-tuning sightlines after everything else is bolted down.

Sabelt GT-Pad Seat Pad Kit Tunes the fit of a generous shell $329.95 Shop on Enzuca →

OMP Seat Bottom Cushion Adjusts height in the shell $89.00 Shop on Enzuca →

Wear parts worth keeping spare

On a reclining seat, the recline mechanism fails long before the shell does — especially in a car that sees frequent driver changes. A spare recline knob and backing plate cost almost nothing and live happily in the trunk. They're exactly the kind of part that breaks on Saturday morning. Harness belt pads are the other cheap comfort item people add after their first full session.

Recline Knob $10.00 Shop on Enzuca →

Recline Backing Plate $15.00 Shop on Enzuca →

Harness Belt Pad $15.00 Shop on Enzuca →

If you're running a cage

Arm restraints keep your arms inside the cockpit during a roll — cheap, easy to overlook, and mandatory in several classes.

Sparco SFI Arm Restraint $65.00 Shop on Enzuca →

Before You Order: The Airbag Question

On a car with a driver's airbag, fitting a fixed-back seat generally means losing the seat-mounted side airbag. Most cars will store a fault and light the airbag warning lamp once a unit is disconnected, and that lamp typically stays on. Inspection, registration and insurance rules vary by state and country — check yours, and check the rulebook if the car runs in an organised series.

Not a reason to avoid it on a dedicated track car. It is a reason to decide deliberately on a modern daily driver.

Order Checklist

1. Seat — confirm the mounting style and harness slots you need.
2. Mounting bracket / side mounts — side for low, bottom for adjustable.
3. Slider — only if the car is shared. Check homologation if you race.
4. Base — correct chassis, correct year, correct side. One per seat, and a separate part from the side mount.
5. Seat hardware — grade-rated bolts with nyloc nuts.
6. Harness — matched to whether you run an FHR.
7. Harness anchor hardware — bolt-in kits for factory points, reinforcement plates for new ones.
8. Sub-belt mount — if your bracket system needs one.
9. Add-ons — padding, spare recline parts, belt pads, arm restraints.

The Bottom Line

Work down from the seat and each decision informs the next: the seat sets what brackets you can use, the brackets set your height, the slider is a commit-now choice, and the base ties it all to the floor. Then your shoulder position — which you only know once the seat is in — dictates the harness geometry.

Check your own club or series rulebook before ordering. Homologation acceptance, expired seats and slider legality all vary between sanctioning bodies, and the tech line is an expensive place to find out.
